Memory in Agent Systems
In this article I outline my thoughts on implementation of memory in GenAI systems.
👋 I am Aurimas. I write the SwirlAI Newsletter with the goal of presenting complicated Data related concepts in a simple and easy-to-digest way. My mission is to help You UpSkill and keep You updated on the latest news in GenAI, MLOps, Data Engineering, Machine Learning and overall Data space.
Agents are the topic of the day. No surprises as we are continuing the extraction of business value from LLMs. While the base LLM is useful in many use cases, it is not equipped with necessary tools and reasoning capabilities (let’s see how far OpenAI o1 and similar models will bring us) to solve real business problems in even semi-autonomous manner.
On 13th of November MLOps community is organising a virtual free conference around Agents in Production, be sure to book your calendar and drop by. The lineup is great, consisting of many top representatives from companies like OpenAI, replit, Microsoft, Google, Hugging Face and more that are at the forefront of building and shipping agentic applications to production. It will be live streamed from an amazing “NXT Museum” in Amsterdam (picture bellow)!
As described in the following article,

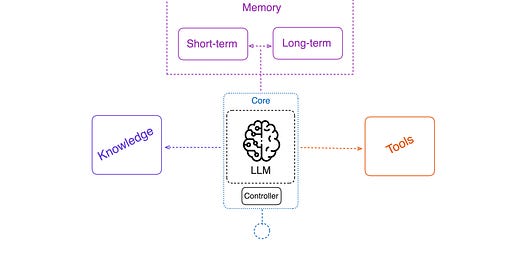

a high level definition of a LLM based agent includes:
A controller application, which orchestrates the actions of the agent. It uses LLM as a brain to define a set of actions that the controller application should complete to achieve the goal. Once this set of actions is defined, the controller can then use capabilities given to it to achieve the desired result. Following are some of the generally used capabilities.
Knowledge - it is some additional context that the application can tap into. You can think of it as a Retrieval piece of RAG system. An usually it actually is exactly that - private context that LLM would not have access to via any other means.
Long Term Memory - similarly like knowledge, the controller might want to revisit some historic interactions that can not be contained in short term memory. Short term memory is usually limited by the context window size of LLM that is complimented with memory compression techniques.
Tools - a set of functions that the controller is allowed to call. Usually the available set of functions is also provided to the llm via a system prompt, so that the actions proposed by it could include the available functions. A function can vary from using a calculator, browsing the interned or even calling another LLM.
Instructions - this is usually a registry of prompts that the controller can use.
Memory component of an Agent.
In this article I will focus on the memory component of the Agent. Generally, we tend to use memory patterns present in humans to both model and describe agentic memory. Keeping that in mind, there are two types of agentic memory:
Short-term memory, or sometimes called working memory.
Long-term memory, that is further split into multiple types.
In the diagram presented at the beginning of the article I have hidden short-term memory as part of the agent core as it is continuously used in the reasoning loop to decide on the next set of actions to be taken in order to solve the provided human intent. For clarity reasons it is worth to extract the memory element as a whole:
We will continue to discuss each type of memory in the following sections.
Short-term memory.
Short-term memory is extremely important in Agentic applications as it represents additional context we are providing to the agent via a system prompt. This additional information is critical for the system to be able to make correct decisions about the actions needed to be taken in order to complete human tasks.
A good example is a simple chat agent. As we are chatting with the assistant, the interactions that are happening are continuously piped into the system prompt so that the system “remembers” the actions it has already taken and can source information from them to decide on next steps. It is important to note, that response of the assistant in agentic systems might involve more complex operations like external knowledge queries or tool usage and not just a regular answer generated by base LLM. This means that short term memory can be continuously enriched by sourcing information from different kinds of memories available to the agent that we will discuss in following chapters.
What are the difficulties in managing short-term memory? Why shouldn’t we just continuously update the context in the system prompt? Few reasons:
The size of context window of LLMs is limited. As we increase the size of a system prompt, it might not fit the context window anymore. Depending on how many tools we allow agent to use, how long the identity definition is or how much of external context we need in the system prompt, the space left for interaction history might be limited.
Even if the context window is large (e.g. 1 million tokens) the ability of the LLM to take into account all the relevant provided context reduces with the amount of data passed to the prompt. When designing Agentic systems our goal should be to architect short-term memory to be as compact as possible (this is where multi-agent systems come into play, but more on that in future articles). The ability for LLMs to better reason in large context windows should and will most likely be improved with continuous research in LLM pre/post-training.
As we expand the system prompt with each step of the interaction with an Agent, this context gets continuously passed to the LLM to produce next set of actions. A consequence of this is that we incur more cost with each iteration of interaction. With more autonomy given to the agent this can unexpectedly and quickly ramp up and easily reach e.g. 500 thousand input tokens per single human intent solved.
We utilise Long-term memory to solve for all of the above and more.
Long-term memory.
You can think of long term memory of an agent as any information that sits outside of the working memory and can be tapped into at any point in time (interesting thought experiment is to consider that multiple instances of the same agent interacting with different humans could tap into this memory independently creating a sort of hive mind. Remember Her?). A nice split of different types of long-term memory is described in a CoALA paper here. It splits the long-term memory into 3 types:
Episodic.
Semantic.
Procedural.
Episodic memory.
This type of memory contains past interactions and actions performed by the agent. While we already talked about this in short term memory segment, not all information might be kept in working memory as the context continues to expand. Few reasons:
As mentioned before, we might not be able to fit continuous interactions into the LLM context.
We might want to end agentic sessions and return to them in the future. In this case the interaction history has to be stored externally.
You might want to create a hive mind type of experience where memory could be shared through-out different sessions of interaction with the agent. Potentially happening at the same time!
The older the interactions, the less relevant they might be. While they might have relevant information, we might want to filter it out thoroughly to extract only relevant pieces to not trash working memory.
Interestingly, implementation of this kind of memory is very similar to what we do in regular Retrieval Augmented Generation systems. The difference is that the context that we store for retrieval phase is coming from within the agentic system rather that from external sources.

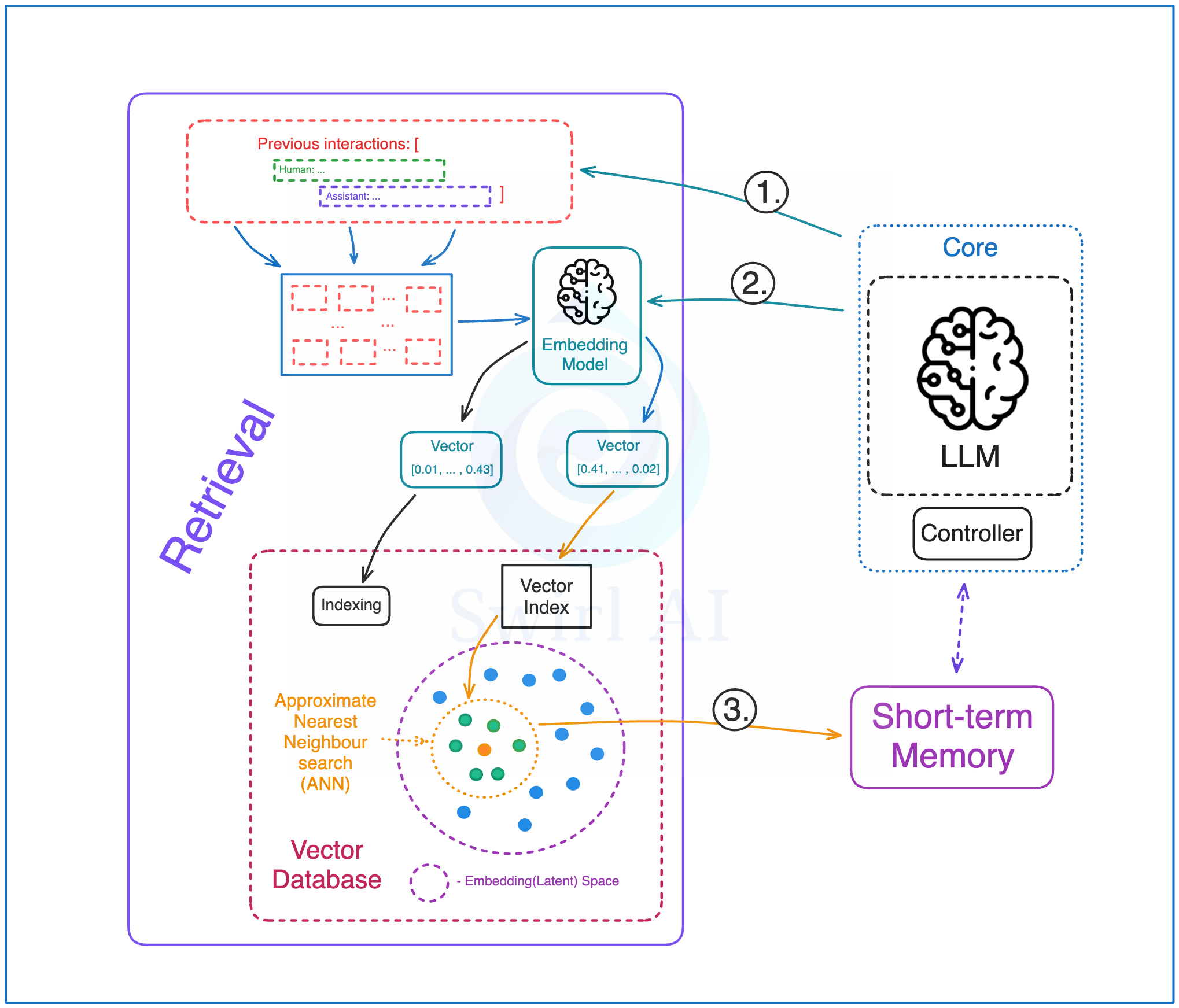

An example implementation would follow these steps:
As we continue interacting with the agent, the performed actions are written to some kind of storage possibly capable of semantic retrieval (similarity search is optional and in some cases regular databases might do the trick). In the example diagram we see Vector Database being used as we continuously embed the actions using an LLM.
Occasionally, when needed we retrieve historic interactions that could enrich the short term context from episodic memory.
This additional context is stored as part of the system prompt in short-term (working) memory and can be used by the agent to plan its next steps.
Semantic memory.
In the paper that was linked at the beginning of long-term memory section - semantic memory is described as:
Any external information that is available to the agent.
Any knowledge the agent should have about itself.
In my initial description of the agent I described a knowledge element. It represents part of the semantic memory. Compared to episodic memory the system looks very similar to RAG, including the fact that we source information to be retrieved from external sources.

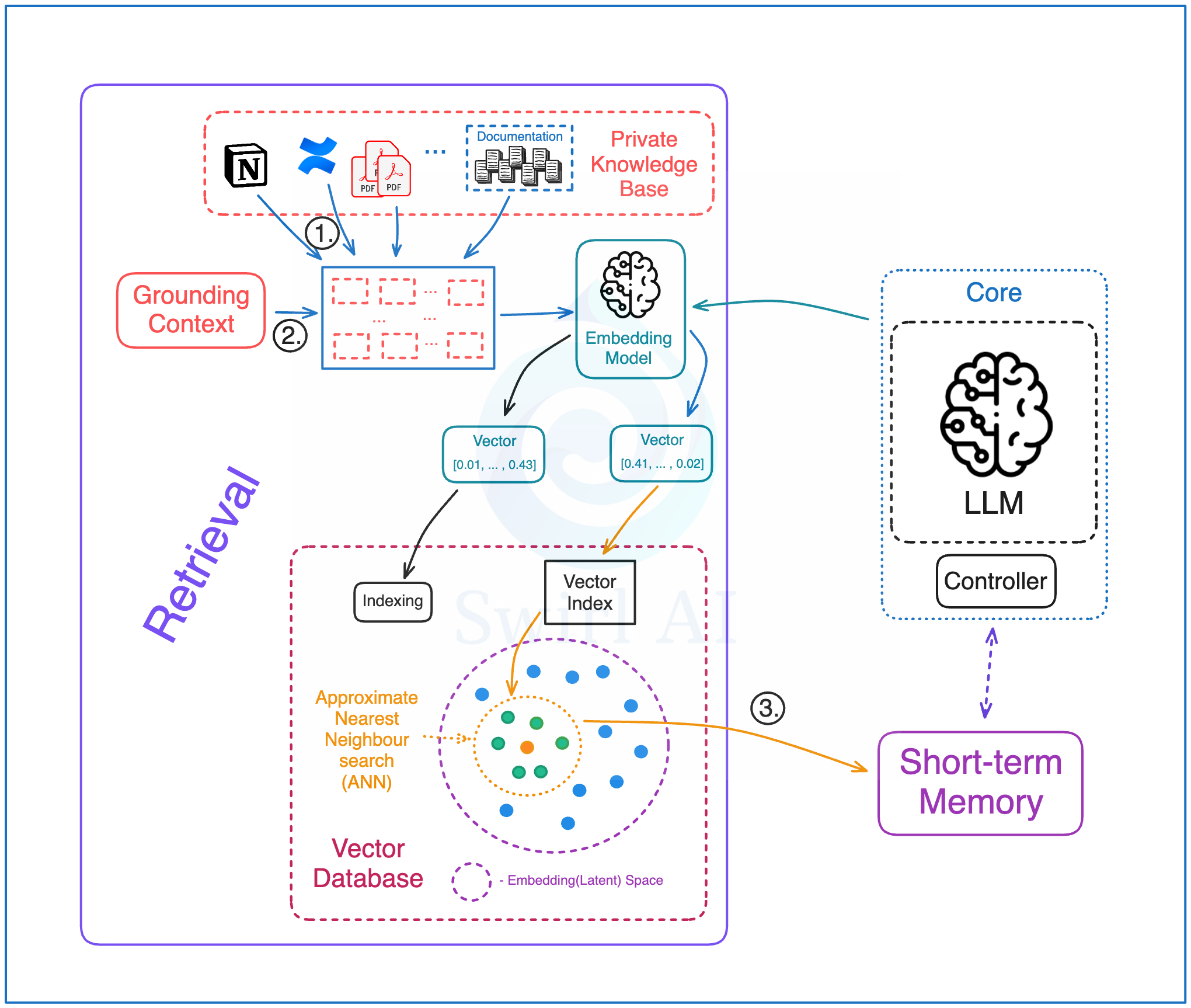

An example implementation would follow these steps:
The knowledge external to the agentic system is stored in some kind of storage possibly capable of semantic retrieval. The information could be internal to the organisation that would otherwise not be available to LLM through any other source.
Information can also be in a form of grounding context where we store a small part of the web scale data that LLM was trained on to make sure that the actions planned by the LLM are grounded in this specific context.
Usually we would allow the agent to search for this external information via a tool provided to the agent in system prompt.
Semantic memory can be grouped into multiple sections and we can allow the agent to choose from different tools to tap into specific area of the knowledge. Implementation can vary:
We could have separate databases to store different types of semantic memory and point different tools to specific databases.
We could add specific metadata identifying the type of memories in the same database and define queries with different pre-filters for each tool to filter out specific context before applying search on top of it.
An interesting note, identity of the agent provided in the system prompt is also considered semantic memory. This kind of information is usually retrieved at the beginning of Agent initialisation and used for alignment.
Procedural memory.
Procedural memory is defined as anything that has been codified into the agent by us. It includes:
The structure of the system prompt.
Tools that we provide to the agent.
Guardrails we put agents into.
Current agents are not yet fully autonomous. Procedural memory also includes the topology of the agentic system.
Closing thoughts.
Memory in agents is one of the main tools to allow planning that is grounded in the relevant context and there are many aspects to memory that you should take into consideration when building out your agentic architectures.
Frameworks that help you build agentic applications implement memory in different ways and you should research how it is done in order to avoid unexpected surprises.
We are still early in understanding how to manage memory of an agent efficiently and I am super glad to have the opportunity to build at the forefront of it all. I will continue to write on the subject so stay tuned in!
